Pipe Slope Calculator: Drain Fall, Grade & Pitch

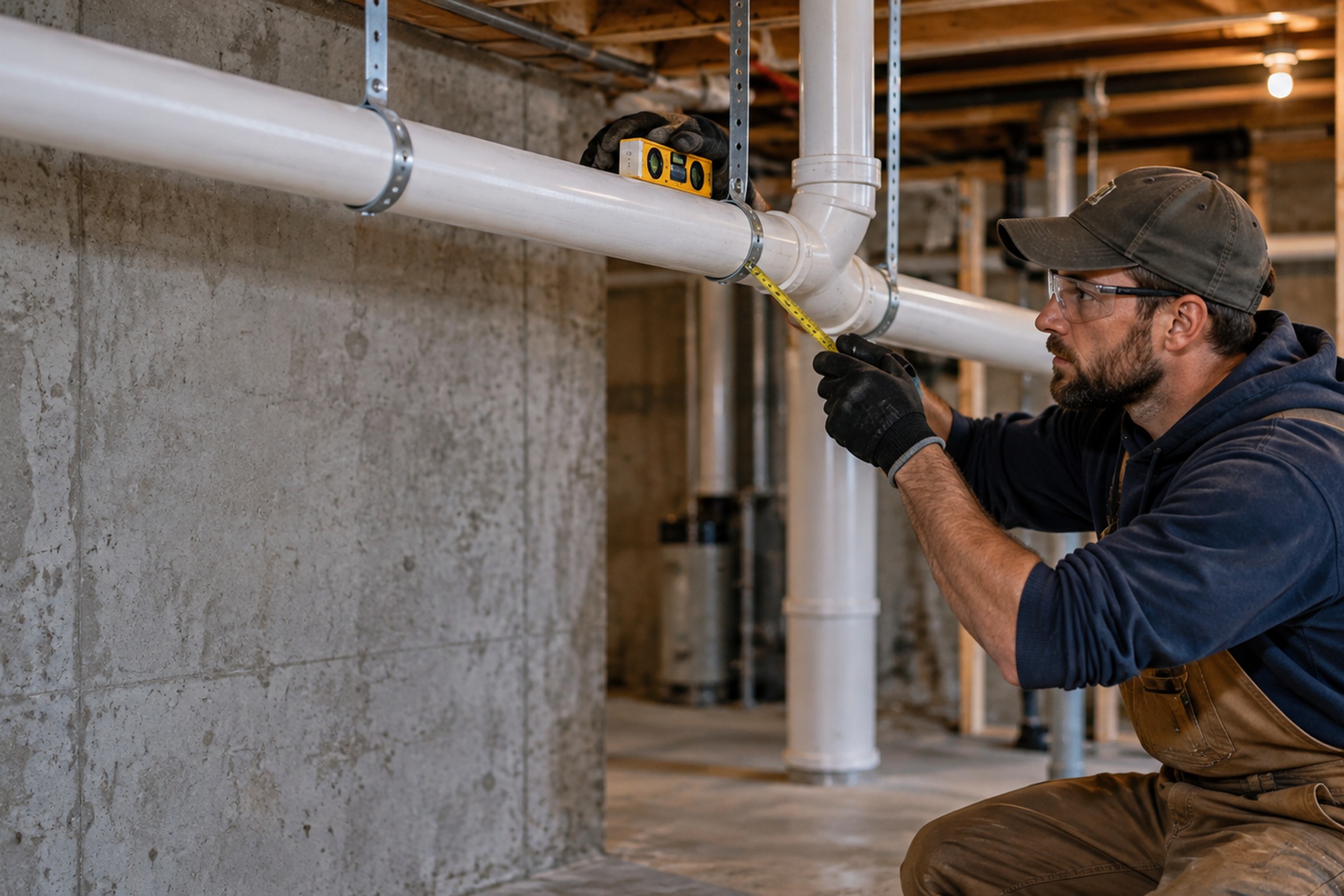

How to Calculate Drain Pipe Slope and Fall

Pipe slope math is simple once the units are balanced: slope = vertical fall ÷ horizontal run. The annoying part is usually that U.S. plumbing mixes feet of run with inches of fall while civil plans may show a percentage or 1:n gradient. That is why the calculator keeps all of the common formats synchronized.

Core pipe slope formulas

Use horizontal run, not diagonal pipe length

Grade is based on the horizontal distance between two points, not the slightly longer centerline distance along the sloped pipe. At ordinary drain slopes the numerical difference is small, but using the correct horizontal baseline matters when you are checking elevations or translating plan dimensions into field fall.

Common Pipe Slopes and Exact Conversions

Trade shorthand often treats 1/4 in/ft as 2% and 1/8 in/ft as 1%. They are close, but not identical. 1/4 in/ft is exactly 2.0833%. 1/8 in/ft is 1.0417%. A true 2% grade equals 0.24 in/ft, not 0.25.

2024 IPC vs. UPC Drain Slope References

The calculator can compare your slope with two current U.S. model-code baselines. It intentionally does not label a design code compliant. Adoption and amendments are local.

That IPC/UPC difference can be material. A 3-inch horizontal drain at 1/8 in/ft matches the IPC table, but it is below the UPC's default 1/4 in/ft baseline.

Worked Pipe Slope Examples

Does Too Much Slope Make Water Outrun Solids?

The catchy field explanation is too simple to use as a universal law. Research from the Plumbing Efficiency Research Coalition (PERC) treats drainline transport as transient surge flow affected by variables such as flush volume, pipe diameter, slope, and test media. Its results do not support a blanket rule that increasing slope automatically makes liquid abandon solids.

That does not mean steeper is always better. Specific systems can have their own slope and venting constraints. For example, the 2024 IPC limits the total fall in a fixture drain before its vent to the diameter of that fixture drain, and its combination waste-and-vent rules include their own slope limits. Use the general calculator for the math, then check the rules for the actual system you are laying out.

Common Plumbing Slope Math Mistakes

1. Mixing inches and feet. Five inches over 20 feet is 0.25 inches per foot, not 25%.
2. Treating 1% as 1 in/ft. One percent is 0.12 in/ft. One inch per foot is 8.333%.
3. Calling 2% exactly 1/4 in/ft. Close, yes. Identical, no.
4. Reversing a 1:n gradient. A larger denominator means a flatter slope. 1:48 is steeper than 1:96.
5. Adding fall to the downstream invert. For gravity drainage, downstream invert = upstream invert − fall.
6. Using the sloped centerline length as the run. Grade uses horizontal run.
